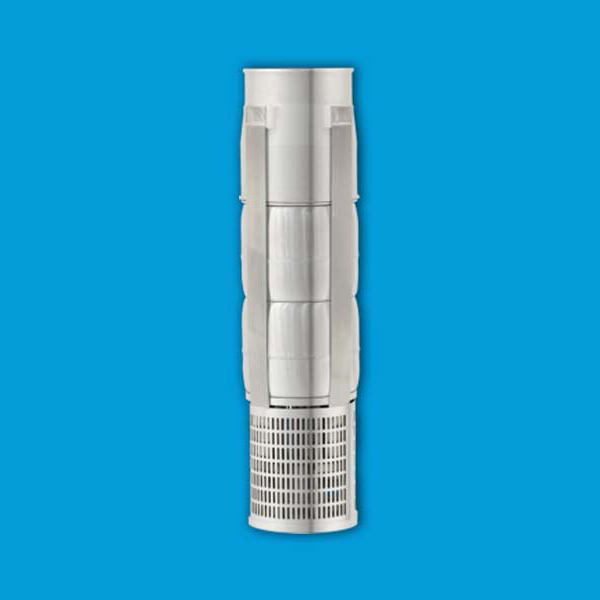

10 inch stainless steel(AISI-304) submersible pump: ideal for industrial, commercial, construction, mining, livestock watering, water supply solutions and more.
These pumps are designed for complete submersion under water. OPAL Pumps 10 inch stainless steel submersible pumps are available in single or multi-stage designs with mixed flow impellers for higher flow requirements. These multi-stage submersible pumps are appropriate for wells with a diameter of at least 10′′ with mixed flow impellers made of various materials.
The 10-inch stainless steel submersible pump operates efficiently, reliably, and provides a long, trouble-free life. They are propelled by water-filled, rewindable submersible motors for continuous operation. Also, the premium shaft bearings attached to the pump offer exceptional wear resistance and reduced friction. All mounting dimensions are in accordance with NEMA/International standards.
Nominal pump size | 10″ |
---|---|
Power Range | 15HP – 250HP |
Speed | 3450 rpm |
Maximum Flow | 1400 gpm |
Maximum Head | 1180 ft |
Outlet Sizes (NPT) | 6” |
