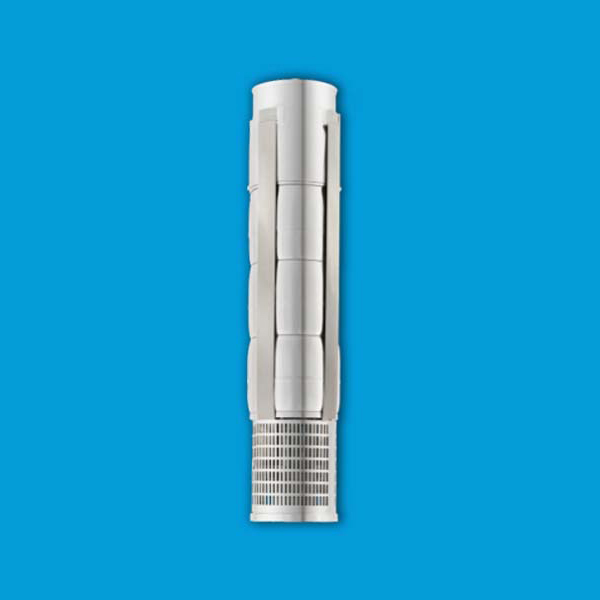

For the most demanding applications such as deep well potable water supply, fire protection systems, municipal water supply, high-rise building pressure vessels, etc. OPAL Pumps 8" stainless steel pumps are manufactured to the highest standards.
Our 8" submersible pumps are appropriate for corrosion and abrasion prevention, energy efficiency, high performance, durability, and long service life, thanks to their fabricated AISI-304 stainless-steel body. The best possible hydraulic efficiency is aided by the ideal design of impellers and diffusers.
Additionally, they are extremely strong and can withstand strong upload thrusts. To ensure trouble-free service, these submersible stainless-steel pumps are particularly manufactured with the highest care and strict quality control at every stage. All mounting dimensions are in accordance with NEMA standards.
Nominal pump size | 8″ |
---|---|
Power Range | 7 ½HP – 125HP |
Speed | 3450 rpm |
Maximum Flow | 680 gpm |
Maximum Head | 1400 ft |
Outlet Sizes (NPT) | 5” |
